CAMP Pulley Small Fixed
Where to Buy
Here's what other sites are saying:
This super-compact, ultralight pulley with fixed side plates is very easy to handle and convenient to carry on a harness while ski touring or mountaineering.

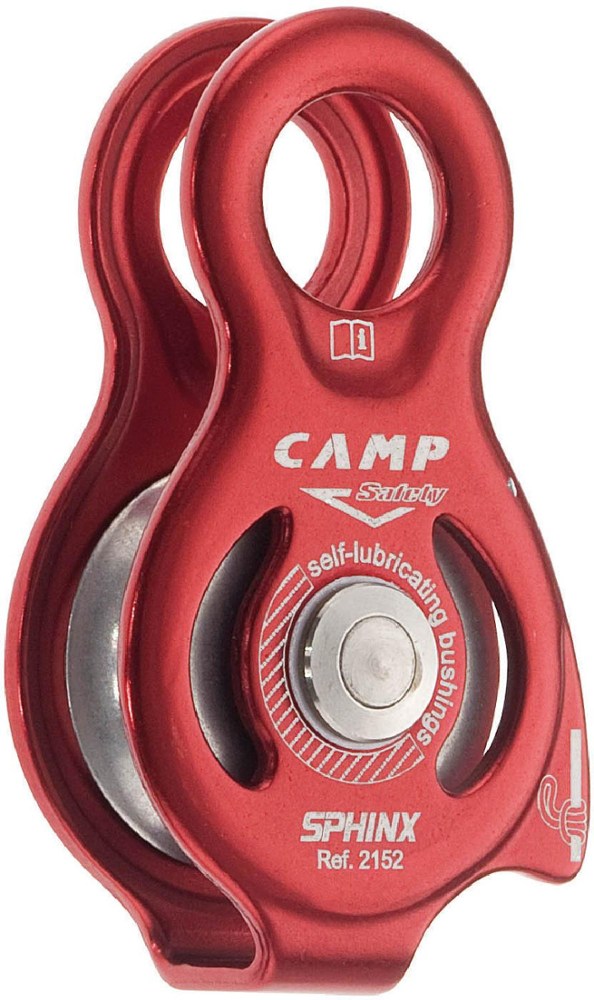

C.A.M.P.'s Sphinx is a super compact, ultralight pulley with fixed side plates. The Sphinx is very easy to handle and convenient to carry on a harness while ski touring or mountaineering. The attachment hole is large enough to allow full rotation of a standard locking carabiner. Self-lubricated brass bushings are perfect for light applications at low speed. Unlike other pulleys with fixed side plates, the Sphinx allows for a prusik knot to be intalled on one side (aramid cord suggested) making it an ideal pulley for rigging a haul system on route or managing crevasse rescues.
Camp USA Pulley Small Fixed FEATURES of the Camp USA Pulley Small Fixed Brass bushing Aluminum alloy sheave Requires locking oval or HMS carabineer cannot be used with D-shapes SPECIFICATIONS of the Camp USA Pulley Small Fixed Weight: 3.2 oz / 90 g Inner Sheave Diameter: 8.3in. / 21 mm Rope Diameter: 12 mm Working Load: 1120 lbf / 5 kN Breaking Load: 4500 lbf / 20 kN Sheave: Aluminum ALL CLIMBING SALES ARE FINAL.
The fixed side plates make this an excellent pulley for quickly rigging a hauling system using an ascender. Clip a locking oval carabiner into the two pulley holes, then clip the carabiner to top of an ascender. Attach this rig to an anchor point that can rotate (such as a sling) using a locking carabiner clipped to the oval carabiner (between the side plates).Rescue, RiggingBrass bushingAluminum alloy sheavePermanent rivet never loosensRequires locking oval or HMS carabiner, cannot be used with D-shapesSpecs:Working Load: 2.5 kN x 2 = 5 kN, 560 LBF x 2 = 1120 LBFBreaking Load: 10 kN x 2 = 20 kN, 2250 LBF x 2 = 4500 LBFInner sheave Diameter: 21 mm, 0.8 inMax Rope Diameter: 12 mmWeight: 110 g, 3.9 oz
